What are the differences and similarities between eccentric and concentric heads
Date:2024-10-09 13:31:26 Author:ZheJiang DiRun Steel Industry Co.,LTD

1728451844709592.jpg     1728451844592767.jpg

Eccentric and concentric reducers both play a role in connecting pipes of different diameters in pipeline systems, but they have significant differences in design, usage scenarios, and functional characteristics. Here is a detailed analysis of the differences and similarities between the two:

Difference

Shape difference:

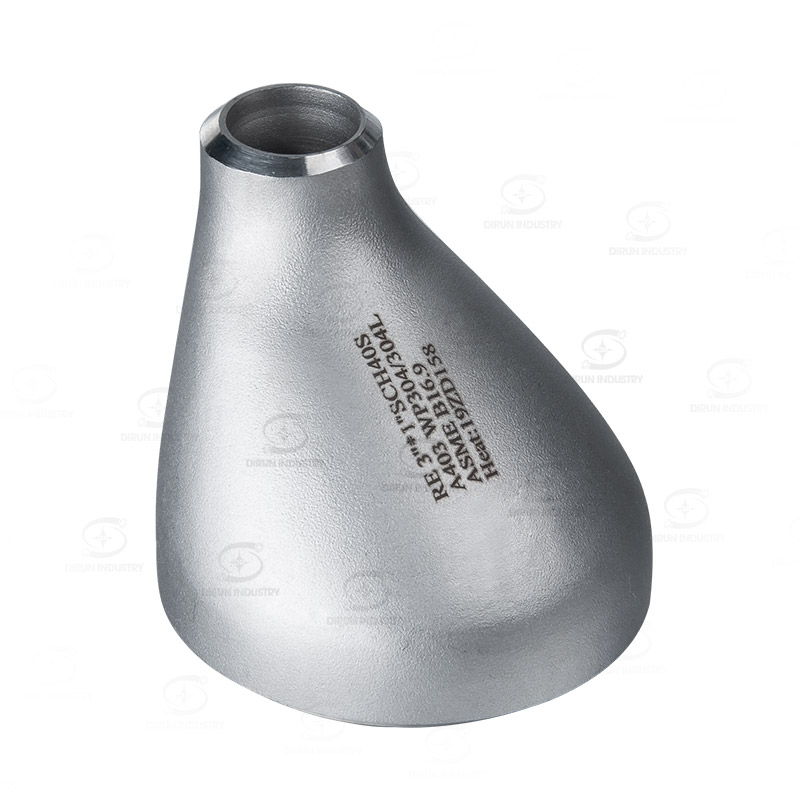

Eccentric head: The centers of the two ends of the pipe are not on the same straight line, that is, their circumferences are inscribed. This design gives the eccentric head a specific advantage in horizontally installed liquid pipelines.

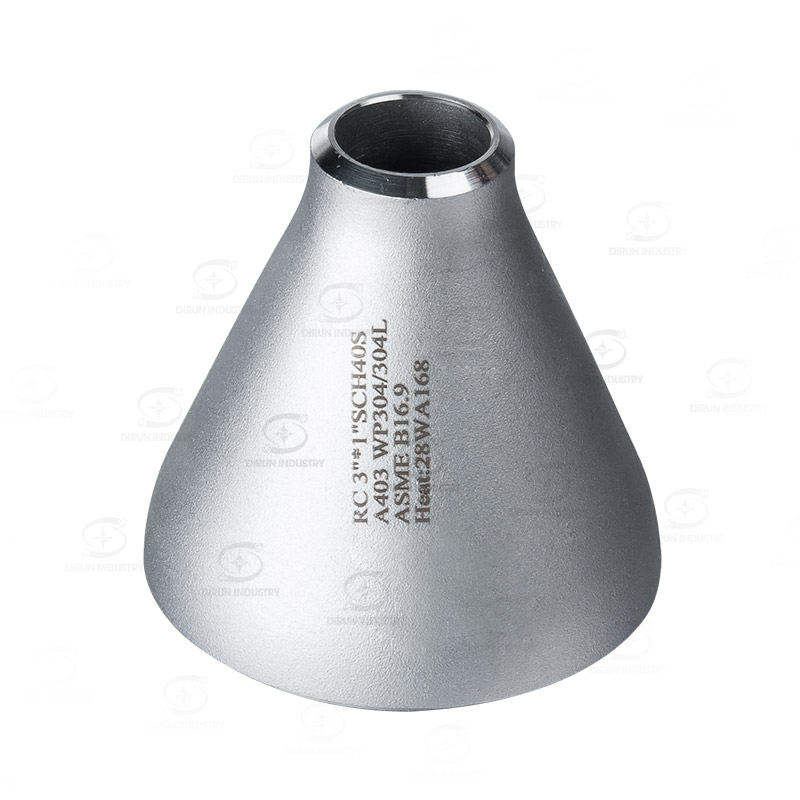

Concentric head: The centers of the two ends of the pipe are on the same straight line. This symmetrical design reduces the interference of concentric heads on fluid flow in fluid transport pipelines, especially in gas or vertically flowing liquid pipelines.

Usage scenario:

Eccentric head: mainly used for horizontally installed liquid pipelines. Due to its flat side, it is conducive to exhaust or draining, making it convenient for driving and maintenance. Especially when pipelines need to be installed on walls or floors to save space, the advantages of eccentric heads are more pronounced. In addition, at the inlet of the pump, in order to prevent cavitation, a top mounted eccentric reducer is usually used.

Concentric head: It is mainly used for fluid transportation pipelines, especially gas or vertically flowing liquid pipelines. Its symmetrical design allows the fluid to maintain a relatively stable flow state when changing diameter, reducing energy loss.

Functional features:

Eccentric head: Due to its flat side, it is easy to exhaust or drain, especially suitable for pipeline systems that require gas or liquid removal. In addition, its design also helps to reduce vibration and noise in the pipeline system.

Concentric head: This is more conducive to the smooth flow of fluids during diameter changes, reducing fluid erosion and wear on pipelines, thereby extending the service life of pipeline systems.

Similarities

Basic function: Whether it is an eccentric or concentric reducer, their basic function is to connect pipes or flanges of different diameters for diameter reduction.

Manufacturing process: The manufacturing processes of the two are similar, and the commonly used forming processes are reduced diameter pressing, expanded diameter pressing, or reduced diameter plus expanded diameter pressing. For certain specifications of reducers, stamping forming technology can also be used for production.

Material selection: In terms of material selection, both can be chosen according to the specific requirements and working environment of the pipeline system, such as carbon steel, stainless steel, alloy steel, etc.

In summary, there are differences in shape, usage scenarios, and functional characteristics between eccentric and concentric reducers, but they both play an important role in connecting pipes of different diameters in pipeline systems. When choosing which type of head to use, comprehensive consideration should be given to the specific pipeline system requirements and working environment.
